11+ Calculating Section Modulus. Where i = moment of inertia, y = distance from centroid to top or bottom edge of the rectangle. In this blog post, we’ll cover section modulus formulas for different shapes, so you can calculate it more quickly.
The elastic section modulus (s). In this blog post, we’ll cover section modulus formulas for different shapes, so you can calculate it more quickly. Equations for the section moduli of common shapes are given below.
The Elastic Section Modulus (S).
Unlike the regular section modulus, this calculator adjusts the values based on the effective width method, which accounts for local buckling in compression zones of thin. To calculate the section modulus, the following formula applies: Equations and calculators are essential tools for determining the section modulus of common shapes, such as beams, channels, and angles.
Section Modulus Is A Geometric Property Used To Calculate The Bending Stresses In A Structural Member.

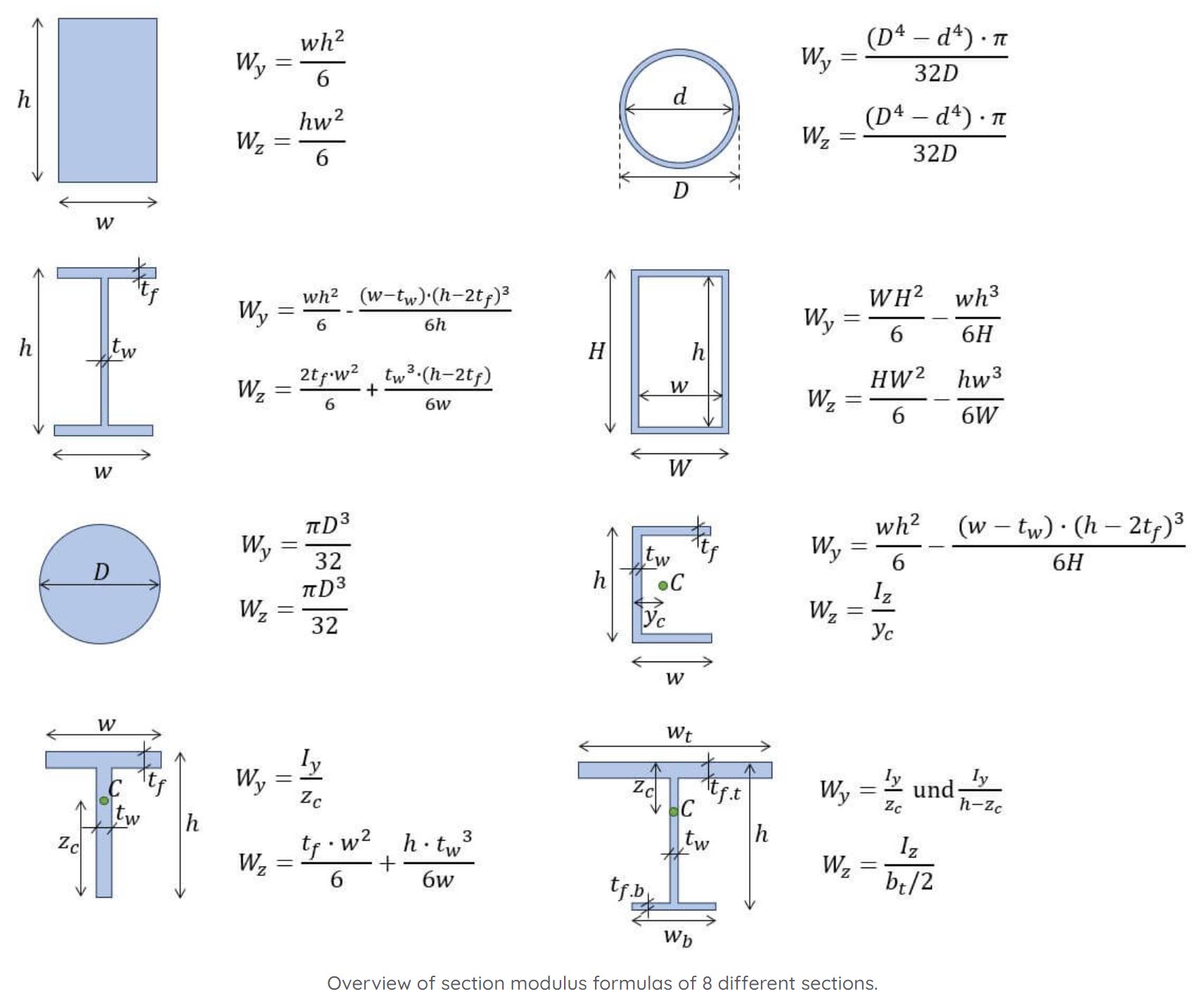

Overview of section modulus formulas of 8 different sections. The section modulus is a measure of the strength of a structural. Where i = moment of inertia, y = distance from centroid to top or bottom edge of the rectangle.
This Calculator Provides The Calculation Of Section Modulus For A Rectangular Section.
Calculate the section modulus for beams, ship components, and more with the section modulus calculator. There are two types of section moduli, the elastic section modulus (s) and the plastic section modulus (z). These tools enable engineers to calculate the.
In This Article, We Will Explore The Calculation Of Section Modulus For Different Shapes, Including Rectangular, Circular, Triangular, And Irregular Sections.
Mathematically, it is defined as the ratio of the moment of inertia of a. Equations for the section moduli of common shapes are given below. In this blog post, we’ll cover section modulus formulas for different shapes, so you can calculate it more quickly.
